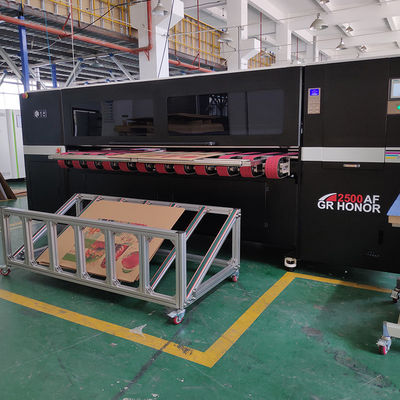

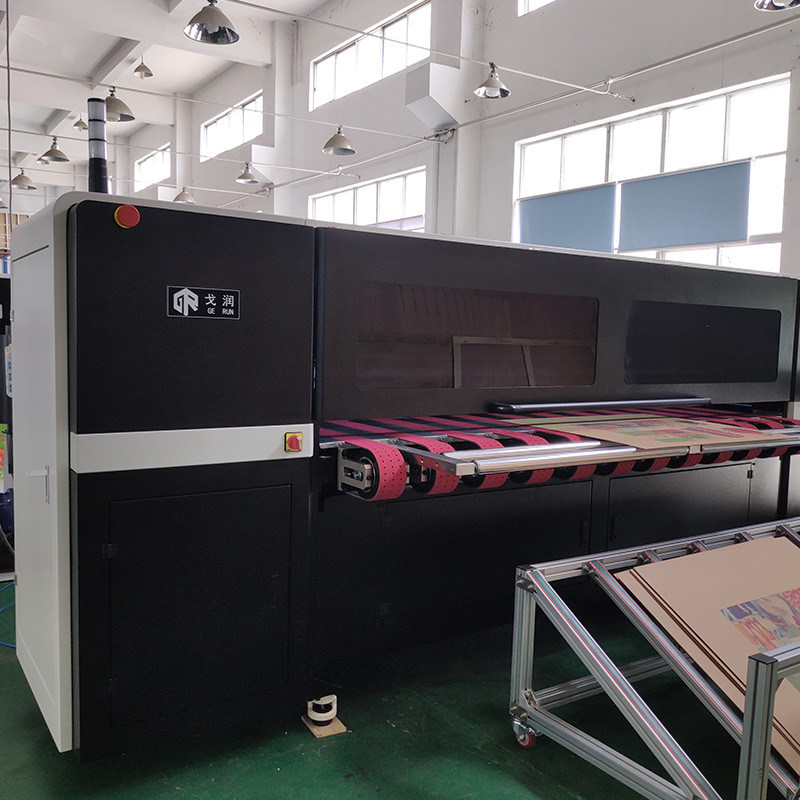

One Pass Corrugated Digital Printing Machine Intelligent CMYK Inkjet
Product Details:
| Place of Origin: | China. Suzhou |
| Brand Name: | GeRun |
| Model Number: | GR2513+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | RMB Meet to talk about |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Corrugated Cardboard Box Intelligent CMYK Inkjet Printing Machine GR2513+ | Printing Accuracy: | ≥360DPI*600DPI |
|---|---|---|---|
| Printing Speed: | 1.5 M/s | Max. Printing Width: | 2480mm |
| Max. Feeding Width: | 2500mm | Media Thickness: | 1~20mm |
| No.s Of Print Head: | 13 | ||
| High Light: | One Pass Corrugated Digital Printing Machine,Corrugated Digital Printing Machine Intelligent,inkjet machine printing machine |
||
Product Description
1. Descriptions:
Carton Box Intelligent CMYK Inkjet Printing Machine is specially designed for corrugated board. It adopts digital print heads. Easy printing can be realized through software operation; Very suitable for personalized, high value-added small batch order
Colorful output
The color pattern can attract people's attention more, and it can be seen that color has created unlimited business opportunities for enterprises. compared to traditional printer, it can reach 360DPI*600DPI and make printing more colorful and vivid
Intelligent
Using digital control technology, the full-color printing resolution far exceeds the resolution of conventional ink printing, making the printed picture more delicate and lifelike. Also, it can automatically change the color
| Model | GR2513+ |
| Printing resolution | ≥360DPI*600DPI |
| Rip Software Rip | Maintop |
| Is customization supported? | IS |
| Picture Format | TIFF,JPG,PDF,PNG |
| FeedingMode | Auto servo Feeding |
| Print Head | EPSON Industrial ALL-MEMS Print Head |
| Working Environment | 18C~30°C humidity:50%~70% |
| Number of sprinkler heads | 13 |
| Operating System | Windows 7 or Later |
| Maximum print width | 2480mm |
| Total Power | About 15KW |
| Media Thicknes | 1~20mm |
| Printer Size | 4420*3650*1720mm |
| Max. Feeding Width | 2500mm |
| Printer Weights | 4300kg |
| Max. Printing Speed | 1000㎡/h |
| Electric voltage | 380V±10% 50~60HZ |
| There are two more | GR2508,GR2508+ |
3. Features
1. Fast production. The max theoretical printing speed of ONE PASS high speed printer is 1.5m/second, this speed can compete with traditional printers.
2.Without film-plate making. no wasting time and cost. ONE PASS high speed printer does not require plate-making, uses advanced digital inkjet printing technology, easier and faster.
3.Envirnomental friendly. ONE PASS high speed printer uses four primary color inkjet printing technology, less washing, less waste water.
4.Reduce manpower. ONE PASS speed printing machine adopts computer drawing ,auto setup the photos to be printed saving time and labor with higher efficiency
