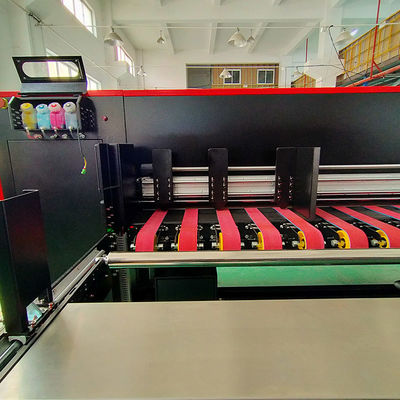

Gerun Digital Corrugated Carton Printing Machine Auto Feeding
Product Details:
| Place of Origin: | Suzhou, China |
| Brand Name: | Ge Run |
| Model Number: | WEP-2504AF+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | RMB Meet to talk about |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | Corrugated Carton Box Digital Auto Feeding Printing MachineWEP-2504AF+ | No.s Of Print Head: | 4 |
|---|---|---|---|
| Rip Software Rip: | Maintop | Picture Format: | TIFF,JPG,PDF,PNG |
| Print Head: | EPSON Industrial ALL-MEMS Print Head | Max. Printing Width: | 2480mm |
| Media Thickness: | 1-20mm | Max. Printing Speed: | 380m²/h |
| Printingresolution: | ≥360DPI*600DPI | ||
| High Light: | corrugated carton printing machine,Gerun digital carton printing machine,printing machine for carton box |
||
Product Description
Corrugated Carton Box Digital Auto Feeding Printing MachineWEP-2504AF+
Description
Auto Feeding
Our machines are energy-efficient and automatically feeding. press roll transmission associated with air suction platform makes materials flat and stable to guarantee the printing quailty.avide the slippery of materials, save time and cost for our customers.
the flexibility of our machine gonna make you feel it is a valuble investment you have ever make.
WEP+Series Progressive Type Main Features
Intelligent sensor system actualizes automatically feeding, saves cost by reducing manual force. Press roll transimission associated air suction platform makes material flat and stable to guarantee the printing quality.Using Epson micro piezoelectric nozzle to make high quality printing.
Siemens PLC control system, ensure the accuracy of material transfer in the printing process.
Japanese Panasonic high precision servo motor ensure the printer output stable and a longer service life
Dell Industrial computer, anti-interference, printing dada been transfered more smoothly
Japanese Omron photoelectric sensor makes the cardboard positioning more precise and stable transmission.
|
Model |
WEP-2504+ |
|
Rip Software Rip |
Maintop |
|
Picture Format |
TIFF,JPG,PDF,PNG |
|
Print Head |
EPSON Industrial ALL-MEMS Print Head |
|
No.s of Print Head |
4 |
|
Ink type and color |
CMYK Water Based Ink |
|
Max. Printing Width |
2480mm |
|
Media Thickness |
1~20mm |
|
Max. Printing Speed |
380m²/h |
|
Min. Feeding Width |
350mm*450mm without scoring, 350mm*660mm with scoring |
|
Max. Feeding Width |
2500*1500mm |
|
Printingresolution |
≥360DPI*600DPI |
|
Feeding Mode |
Auto feeding |
|
Operating System |
Windows 7 or Later Version |
|
Working Environment |
18～30℃, humidity: 50%～70% |
|
Electric voltage |
220V±10% 50/60HZ |
|
Total Power |
4700W |
|
Printer size(L*W*H) |
4200*3500*1580mm |
|
Printer weight |
3200kgs |
