Custom Corrugated Digital Box Printing Machine Cmyk Printing Press

Custom Corrugated Digital Box Printing Machine Cmyk Printing Press

Product Details:

Place of Origin: Suzhou, China
Brand Name: GERUN
Model Number: GR2513+

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: RMB Meet to talk about
Payment Terms: T/T
Get Best Price Contact Now

Detail Information
Product Name: Corrugated Box Printing Machine GR2513+ Printing Resolution: ≥360DPI*600DPI
FeedingMode: Auto Servo Feeding Picture Format: TIFF,JPG,PDF,PNG
Maximum Print Width: 2480mm Max. Feeding Width: 2500mm
Max. Printing Speed: 1000㎡/h
High Light:

custom box printing machine

,

Corrugated Box Printing Machine Cmyk

,

cmyk printing press

Product Description

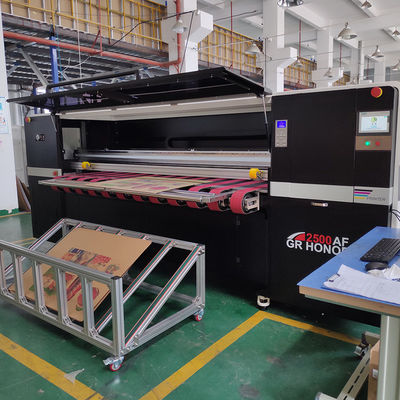

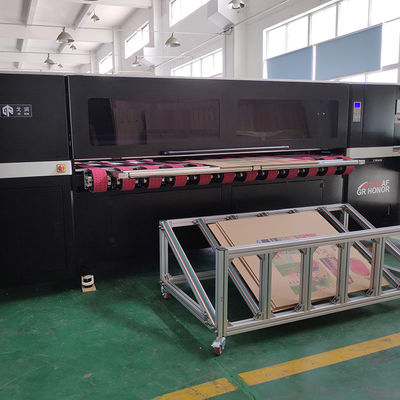

Corrugated Box Printing Machine GR2513+

A multi-pass digital printing machine is a type of digital printer that uses a sophisticated process to achieve higher quality prints. Unlike a single-pass printing machine, which prints an entire page in one pass, a multi-pass printing machine passes the print paper or substrate multiple times through the printer head, printing one color at a time. This method allows the machine to produce high-quality prints with greater detail and color accuracy. Multi-pass digital printing machines are widely used in industries such as textiles, packaging, and signage, where high-quality printing is critical. However, the multi-pass process usually takes longer to complete compared to a single-pass digital printing machine. The printing quality, complexity, and material type will also affect the print time. Multi-pass printing machines are ideal for printing products such as high-end labels, fine art reproduction prints, and photographic prints.


Honor Series Progressive Type Printing Machine Main Features


1.Max Print area width per pass is 433mm for 13pcs Micro-piezo Epson print head and 266mm for 8pcs, max.printing speed is up to 1000 squremeter per hour


2. The printing area is attached with suction belt for paper feeding. there are two noise absorption fans. either big or small size of paperboard all can be printed without paper slippery problem


3.Full-Automatic moror controlled the feeding function, one key ready by digital setting, manually operation time been shorten and accuracy been improved. upgraded plus model applied servo feeding for higher reaction speed and printing efficiency.


4.The printer can be easily operated, there are three color indicator lights to help you observing the working of the machine. and the overall outlook of the machine also elegant and decent.


PARAMETERS

Model

 GR2513+

Printing resolution

≥360DPI*600DPI

Rip Software Rip

 Maintop

Is customization supported?

 IS

Picture Format

 TIFF,JPG,PDF,PNG

FeedingMode

Auto servo Feeding

Print Head

 EPSON Industrial ALL-MEMS Print Head

Working Environment

18C~30°C  humidity:50%~70%

Number of sprinkler heads

 13

Operating System

Windows 7 or Later

Maximum print width

 2480mm

Total Power

 About 15KW

Media Thicknes

1~20mm

Printer Size

 4420*3650*1720mm

Max. Feeding Width

 2500mm

Printer Weights

 4300kg

Max. Printing Speed

 1000㎡/h

Electric voltage

 380V±10% 50~60HZ

There are two more

 GR2508,GR2508+
