Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer

Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer

Product Details:

Place of Origin: Suzhou, China
Brand Name: GERUN
Model Number: GR2508+

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: RMB Meet to talk about
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Corrugated Carton Box Multipass Inkjet Printing Machine GR2508+ Printing Resolution: ≥360DPI*600DPI
FeedingMode: Auto Servo Feeding Picture Format: TIFF,JPG,PDF,PNG
Maximum Print Width: 2480mm Max. Feeding Width: 2500mm
Max. Printing Speed: 700㎡/h Type: GR2508+
High Light:

Multi pass digital printing machine

,

commercial inkjet printer

,

Multi Pass Digital Printing

Product Description

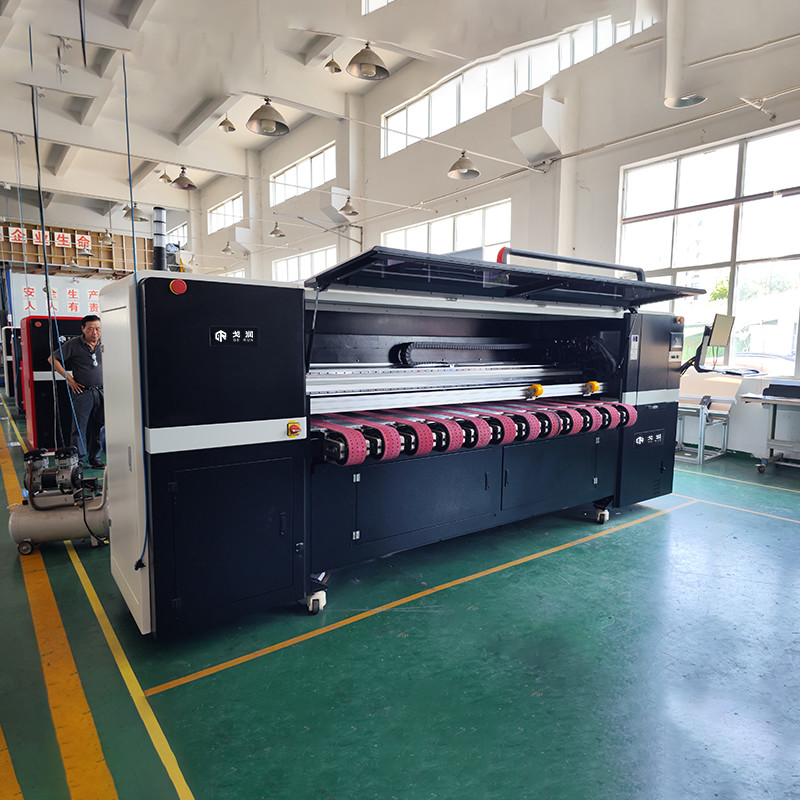

Corrugated Carton Box Multipass Inkjet Printing Machine GR2508+



Description

Honor Series Progressive Type Printing Machine Description



Corrugated Carton Box Multipass Inkjet Printing Machine is specially designed for corrugated board. It adopts digital print heads. Easy printing can be realized through software operation; Very suitable for personalized, high value-added small batch order

Multipass

The combination of multiple printing heads installed, by adjusting the printing spacing, scanning back and forth for multi times, make sure the color superimposed multi times, ensure the lager colorful pattern more brighter and vivid. Guarantee the printing quality by using Epson Micro piezoeletric nozzle.

High Resolution

Using digital control technology, the full-color printing resolution far exceeds the resolution of conventional ink printing, making the printed picture more delicate and lifelike.



Honor Series Progressive Type Printing Machine Main Features


1.Max Print area width per pass is 433mm for 13pcs Micro-piezo Epson print head and 266mm for 8pcs, max.printing speed is up to 1000 squremeter per hour


2. The printing area is attached with suction belt for paper feeding. there are two noise absorption fans. either big or small size of paperboard all can be printed without paper slippery problem


3.Full-Automatic moror controlled the feeding function, one key ready by digital setting, manually operation time been shorten and accuracy been improved. upgraded plus model applied servo feeding for higher reaction speed and printing efficiency.


4.The printer can be easily operated, there are three color indicator lights to help you observing the working of the machine. and the overall outlook of the machine also elegant and decent.



PARAMETERS



Model

GR2508+

Printing resolution

≥360DPI*600DPI

Rip Software Rip

Maintop

Whether the ink is waterproof

NO

Picture Format

TIFF,JPG,PDF,PNG

FeedingMode

Auto servo Feeding

Print Head

EPSON Industrial ALL-MEMS Print Head

Working Environment

18C~30°C  humidity:50%~70%

Number of sprinkler heads

8

Operating System

Windows 7 or Later

Maximum print width

2480mm

Total Power

About15KW

Media Thicknes

1~20mm

Printer Size

4420*3350*1720mm

Max. Feeding Width

2500mm

Printer Weights

4200kg

Max. Printing Speed

700㎡/h

Electric voltage

380V±10% 50~60HZ

Is customization supported?

YES

Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 0Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 1Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 2Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 3Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 4Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 5Multi Pass Digital Printing Machine For Corrugated Box Commercial Inkjet Printer 6
