Board Corrugated Digital Printer Digital Inkjet Printing Press

Board Corrugated Digital Printer Digital Inkjet Printing Press

Product Details:

Place of Origin: Suzhou, China
Brand Name: GERUN
Model Number: GR2508

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: RMB Meet to talk about
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Product Name: Corrugated Carton Box Shortrun Inkjet Printing Machine GR2508 Printing Resolution: ≥360DPI*600DPI
FeedingMode: Auto Servo Feeding Picture Format: TIFF,JPG,PDF,PNG
Maximum Print Width: 2480mm Max. Feeding Width: 2500mm
Max. Printing Speed: 700㎡/h Type: GR2508+
High Light:

digital inkjet printing press

,

Corrugated Board Digital Printing Machine

,

inkjet digital press

Product Description

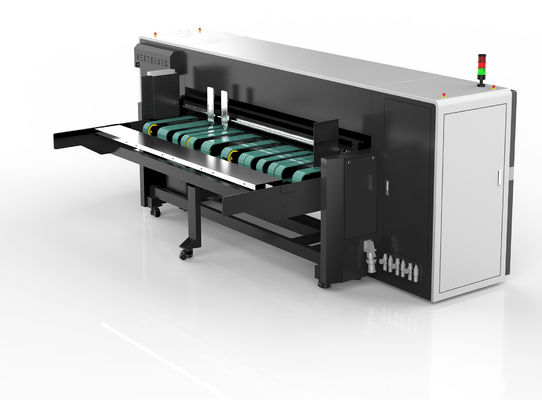

Corrugated Carton Box Shortrun Inkjet Printing Machine GR2508



 Description



Corrugated Carton Box Shortun Inkjet Printing Machine is specially designed for corrugated board. It adopts digital print heads. Easy printing can be realized through software operation; Very suitable for personalized, high value-added small batch order

Fast order switch

At present, the personalization of cartons is gradually increasing, and there are more and more short-run orders, which has caused many difficulties for manufacturers. The plateless digital printing machine can print when it is turned on. It has great advantages for quick sampling, small batch replenishment and urgent order production, and it can be used for "one piece order printed immediately" and "soon ready while waiting".

High Resolution

Using digital control technology, the full-color printing resolution far exceeds the resolution of conventional ink printing, making the printed picture more delicate and lifelike.



Honor Series Progressive Type Printing Machine Main Features


1.Max Print area width per pass is 433mm for 13pcs Micro-piezo Epson print head and 266mm for 8pcs, max.printing speed is up to 1000 squremeter per hour


2. The printing area is attached with suction belt for paper feeding. there are two noise absorption fans. either big or small size of paperboard all can be printed without paper slippery problem


3.Full-Automatic moror controlled the feeding function, one key ready by digital setting, manually operation time been shorten and accuracy been improved. upgraded plus model applied servo feeding for higher reaction speed and printing efficiency.


4.The printer can be easily operated, there are three color indicator lights to help you observing the working of the machine. and the overall outlook of the machine also elegant and decent.



PARAMETERS



Model

GR2508

Printing resolution

≥360DPI*600DPI

Rip Software Rip

Maintop

Whether the ink is waterproof

NO

Picture Format

TIFF,JPG,PDF,PNG

FeedingMode

Auto servo Feeding

Print Head

EPSON Industrial ALL-MEMS Print Head

Working Environment

18C~30°C  humidity:50%~70%

Number of sprinkler heads

8

Operating System

Windows 7 or Later

Maximum print width

2480mm

Total Power

About15KW

Media Thicknes

1~20mm

Printer Size

4420*3350*1720mm

Max. Feeding Width

2500mm

Printer Weights

4200kg

Max. Printing Speed

700㎡/h

Electric voltage

380V±10% 50~60HZ

Is customization supported?

YES
